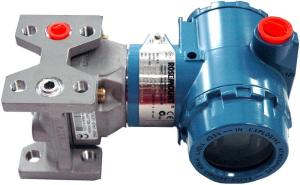

3051CG Gauge Pressure Type Common Plane Pressure Transmitter

Model Number : 3051CG

Certification : ISO9001

Place of Origin : Singapore

MOQ : 1pcs

Price : negotiable

Payment Terms : T/T

Delivery Time : 5-8 work days

Packaging Details : carton

Communication Protocol : HART

Mounting Type : DIN rail or pipe mount

Measurement Range : 0-1500 psi

Certifications : ATEX, IECEx, FM, CSA, CE

Output Signal : 4-20 mA

Model : 3051

Power Supply : 10.5-55 VDC

Operating Temperature : -40 to 85°C

Accuracy : +/- 0.025% of span

Process Connection : 1/4 inch NPT

Display Type : LCD

Wetted Materials : 316L stainless steel

Measurement Type : Pressure

Contact Now

High Quality 3051CG Gauge Pressure Type Common Plane Pressure Transmitter
Product Description:

The industry-proven 3051 with patented Coplanar technology allows for direct mounting in multiple measurement applications. 10-year stability and 150:1 rangedown produce reliable measurements and wide application flexibility. Available with a graphical, back-lit display, Bluetooth® connectivity, Flow and Level specific configuration and enhanced software capabilities designed to access the data you need faster than ever before.

Product Specifications:

Overall Performance: ±0.15%
Accuracy: ±0.075%
Range Ratio: Up to 150:1
Communication Protocol: 4-20 mA HART, WirelessHART®, FOUNDATION Fieldbus, Profibus, 1-5V Low Power HART
Measurement Range: Gauge pressure up to 2000 psig (137.89 bar)
Process Wetted Materials: 316L Stainless Steel, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L Stainless Steel
Diagnostics: Basic diagnostics, loop integrity

code Structural component materials Process flange material flange material drain/exhaust valve flange joint CD CG CA
5 Coplanar electroplated carbon steel SST electroplated carbon steel -- -- --
2 Coplanar SST SST SST -- -- --
3(2) Coplanar Hastelloy C Hastelloy C Hastelloy C -- -- --
4 Coplanar Monel Monel Monel -- -- --
8(2) Coplanar electroplated carbon steel Hastelloy C electroplated carbon steel -- -- --
7(2) Coplanar SST Hastelloy C SST -- -- --
0 Alternative flange - see options H2H3H4H7F1F2G1G2FAFBFCFD or S5
code Isolation Diaphragm CD CG CA
5 316L SST -- -- --
2 Hastelloy C-276 -- -- --
3(2) Monel -- -- --
4 Tantalum (only applicable to 3051CD and CG models, range 2-5. Not applicable to 3051CA model) -- -- --
5 Gilded Monel -- -- --
6
code 0-type ring CD CG CA
A Glass filled tetrafluoroethylene (TFE) -- -- --
B Graphite filled tetrafluoroethylene (TFE) -- -- --
code Fill liquid CD CG CA
1 silicone oil -- -- --
2 Inert liquid (halogenated hydrocarbon) -- -- --
code Shell material, conduit inlet size CD CG CA
A Aluminum, coated with polyurethane coating 1/2-14NPT -- -- --
B Aluminum, coated with polyurethane M2x1.5 (CM20) -- -- --
C Aluminum, coated with polyurethane PG13.5 -- -- --
D Aluminum, coated with polyurethane G 1/2 -- -- --
J SST 1/2-14NPT -- -- --
K SST M2x1.5 (CM20) -- -- --
L SST PG13.5 -- -- --

Models of 3051CG Transmitters:

3051CG1A02A1AB1H2L4M5
3051CG2A02A1AB1H2L4M5
3051CG3A02A1AB1H2L4M5
3051CG4A02A1AB1H2L4M5
3051CG5A02A1AB1H2L4M5
3051CG1A02A1AB3H2L4M5
3051CG2A02A1AB3H2L4M5
3051CG3A02A1AB3H2L4M5
3051CG4A02A1AB3H2L4M5
3051CG5A02A1AB3H2L4M5
3051CG1A02A1AB1H2L4M5K5
3051CG2A02A1AB1H2L4M5K5
3051CG3A02A1AB1H2L4M5K5
3051CG4A02A1AB1H2L4M5K5
3051CG5A02A1AB1H2L4M5K5
3051CG1A02A1AB1H2L4M5E5
3051CG2A02A1AB1H2L4M5E5
3051CG3A02A1AB1H2L4M5E5
3051CG4A02A1AB1H2L4M5E5
3051CG5A02A1AB1H2L4M5E5
3051CG1A02A1AB1H2L4M5I5
3051CG2A02A1AB1H2L4M5I5
3051CG3A02A1AB1H2L4M5I5
3051CG4A02A1AB1H2L4M5I5
3051CG5A02A1AB1H2L4M5I5
3051CG1A02A1AB3H2L4M5K5
3051CG2A02A1AB3H2L4M5K5
3051CG3A02A1AB3H2L4M5K5
3051CG4A02A1AB3H2L4M5K5
3051CG5A02A1AB3H2L4M5K5
3051CG1A02A1AB3H2L4M5E5
3051CG2A02A1AB3H2L4M5E5
3051CG3A02A1AB3H2L4M5E5
3051CG4A02A1AB3H2L4M5E5
3051CG5A02A1AB3H2L4M5E5
3051CG1A02A1AB3H2L4M5I5
3051CG2A02A1AB3H2L4M5I5
3051CG3A02A1AB3H2L4M5I5
3051CG4A02A1AB3H2L4M5I5
3051CG5A02A1AB3H2L4M5I5
3051CG1A22A1AB4M5
3051CG2A22A1AB4M5
3051CG3A22A1AB4M5
3051CG4A22A1AB4M5
3051CG5A22A1AB4M5
3051CG1A22A1AB4M5DF
3051CG2A22A1AB4M5DF
3051CG3A22A1AB4M5DF
3051CG4A22A1AB4M5DF
3051CG5A22A1AB4M5DF
3051CG1A22A1AB4M5K5
3051CG2A22A1AB4M5K5
3051CG3A22A1AB4M5K5
3051CG4A22A1AB4M5K5
3051CG5A22A1AB4M5K5
3051CG1A22A1AB4M5E5
3051CG2A22A1AB4M5E5
3051CG3A22A1AB4M5E5
3051CG4A22A1AB4M5E5
3051CG5A22A1AB4M5E5
3051CG1A22A1AB4M5I5
3051CG2A22A1AB4M5I5
3051CG3A22A1AB4M5I5
3051CG4A22A1AB4M5I5
3051CG5A22A1AB4M5I5
